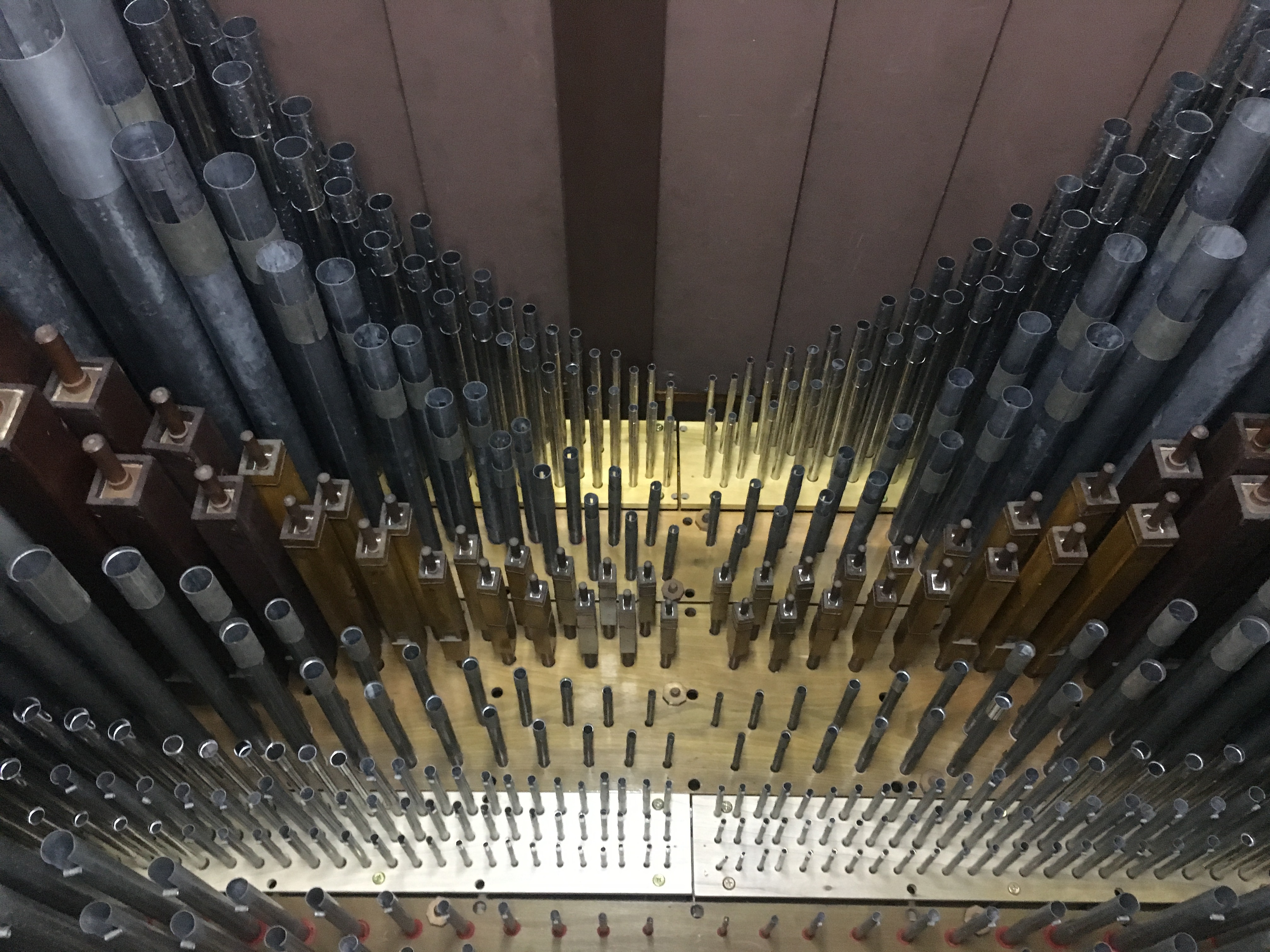

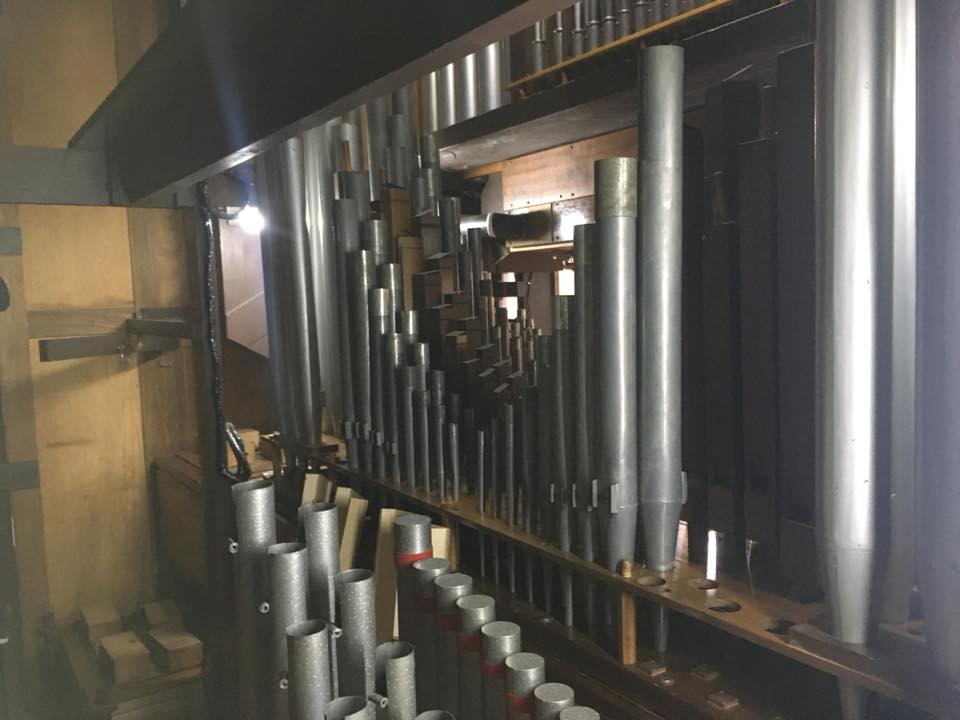

The pipework will be cleaned on site and minor repairs undertaken.  The Reeds and Mixtures to be returned to Durham for repairs and adjustments.  Swell Diapason & Mixtures to be revised and new pipework to be made.

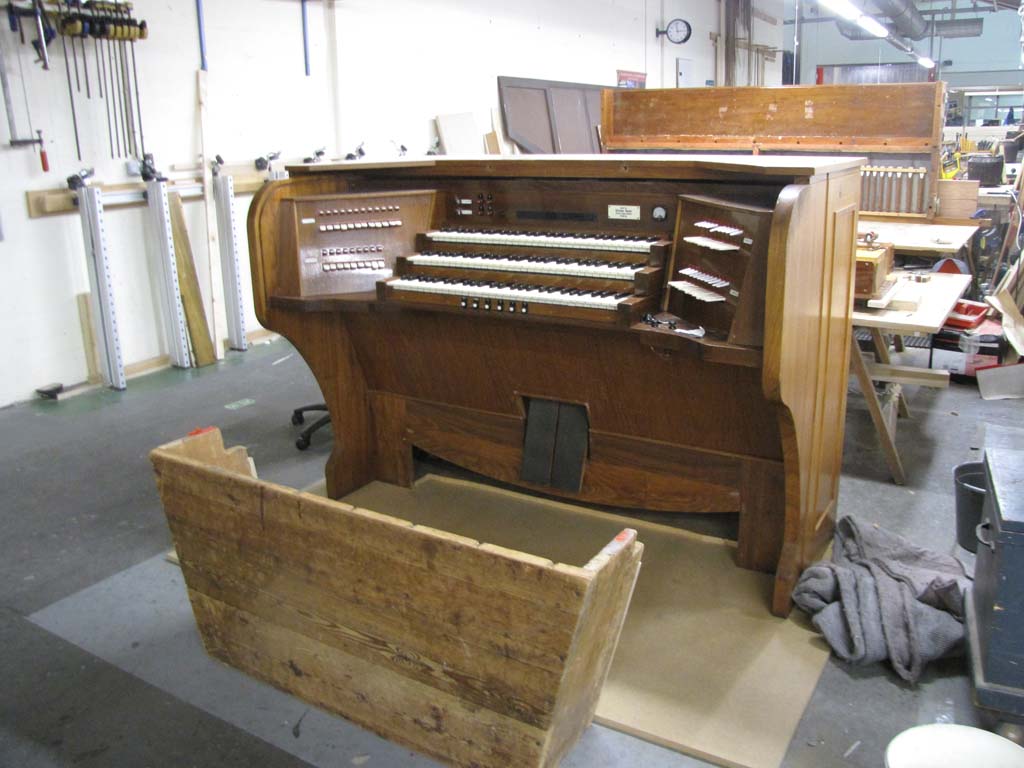

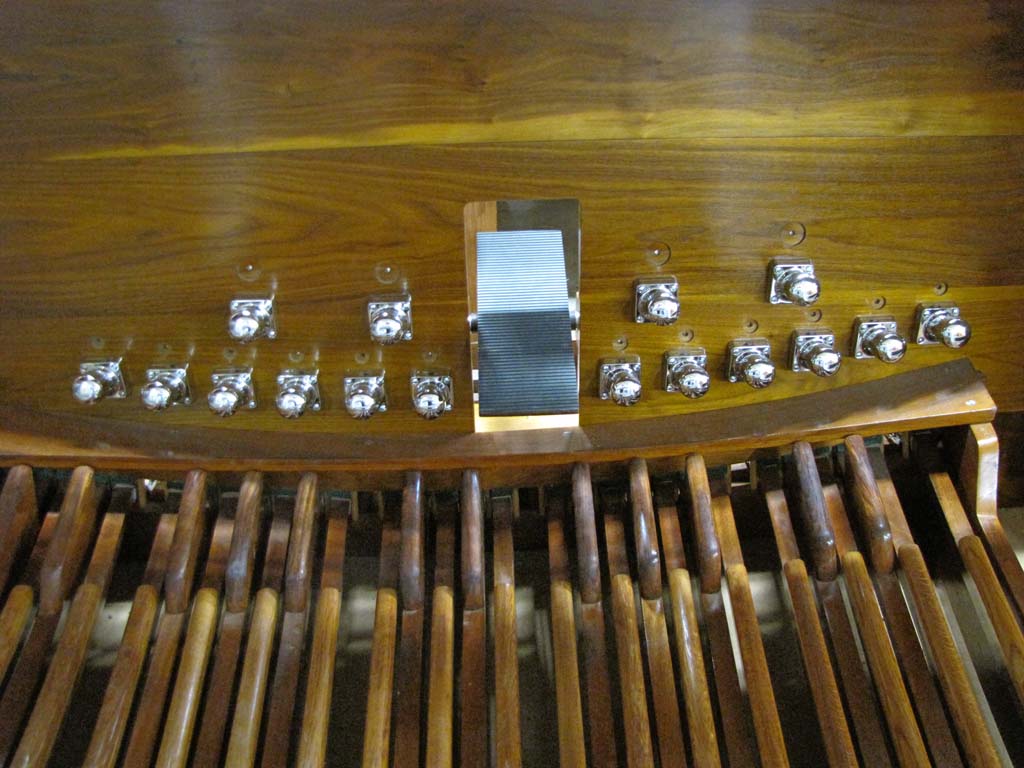

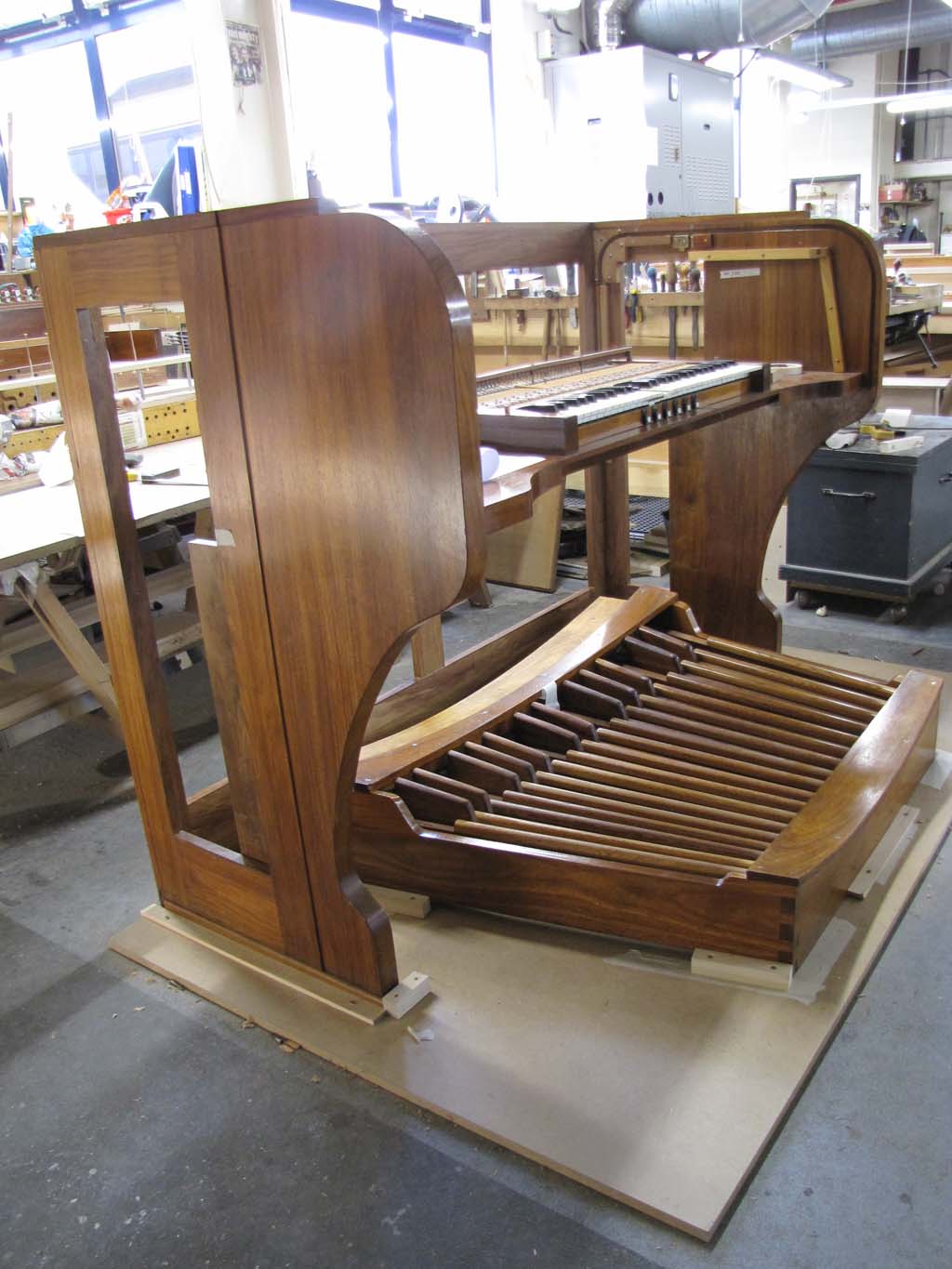

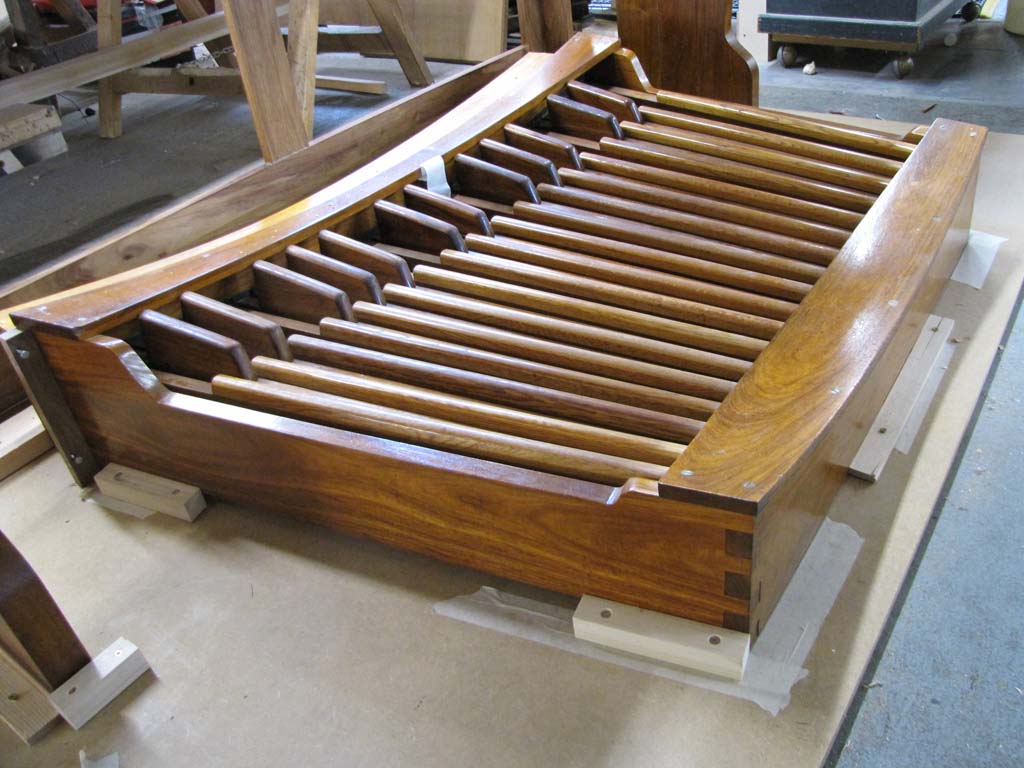

Console Keyboards and pedalboard to be overhauled with an addition of new components to accommodate the new stop changes.

​

​

​

A new low-voltage electrical system will be installed throughout the organ.

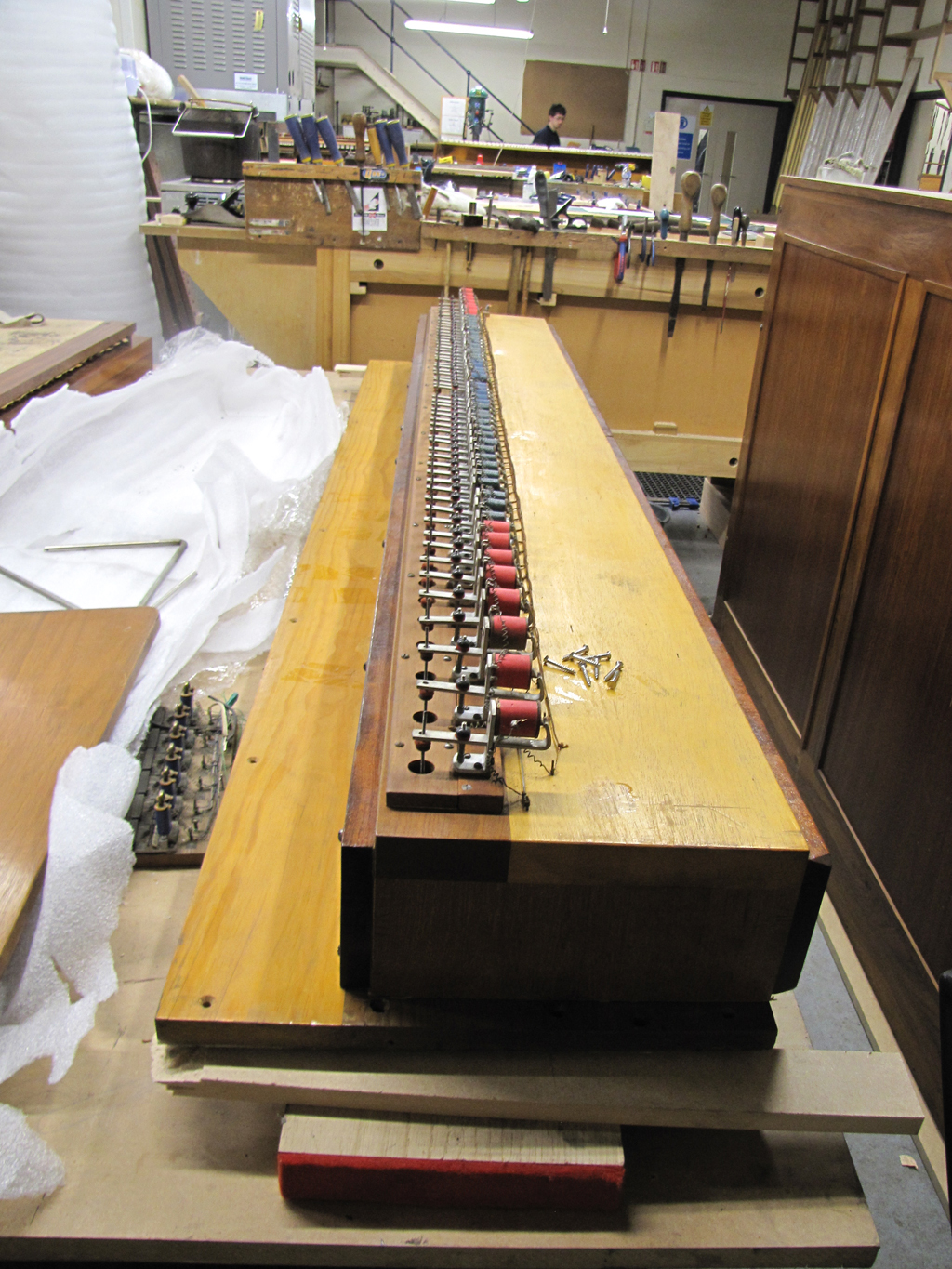

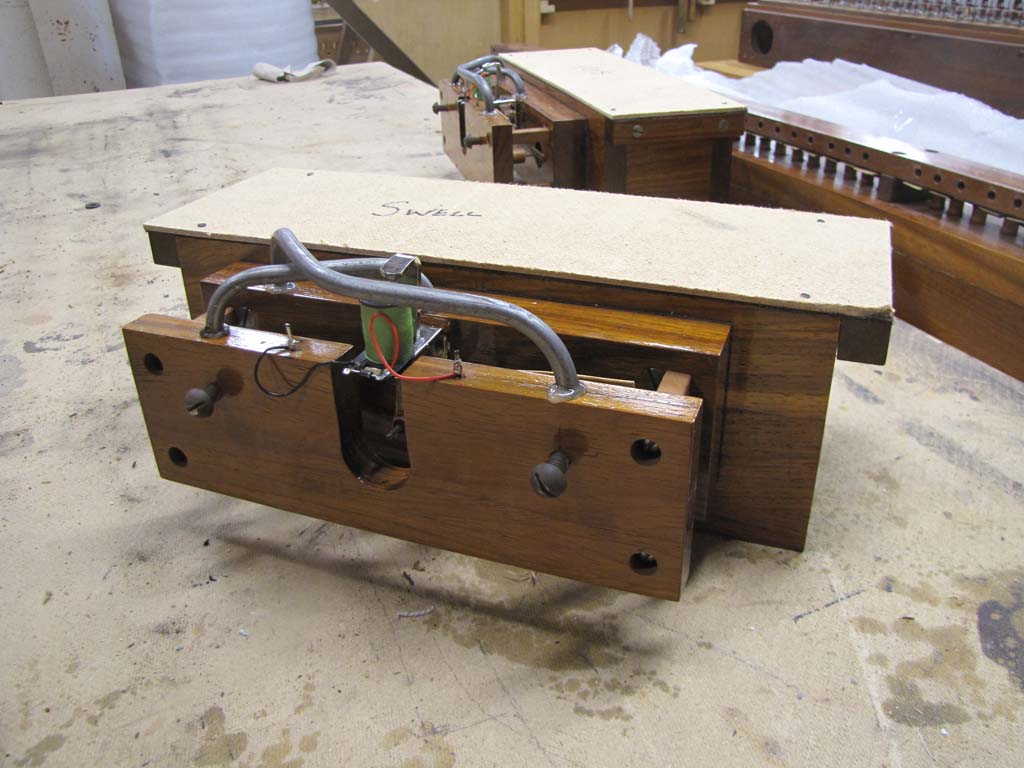

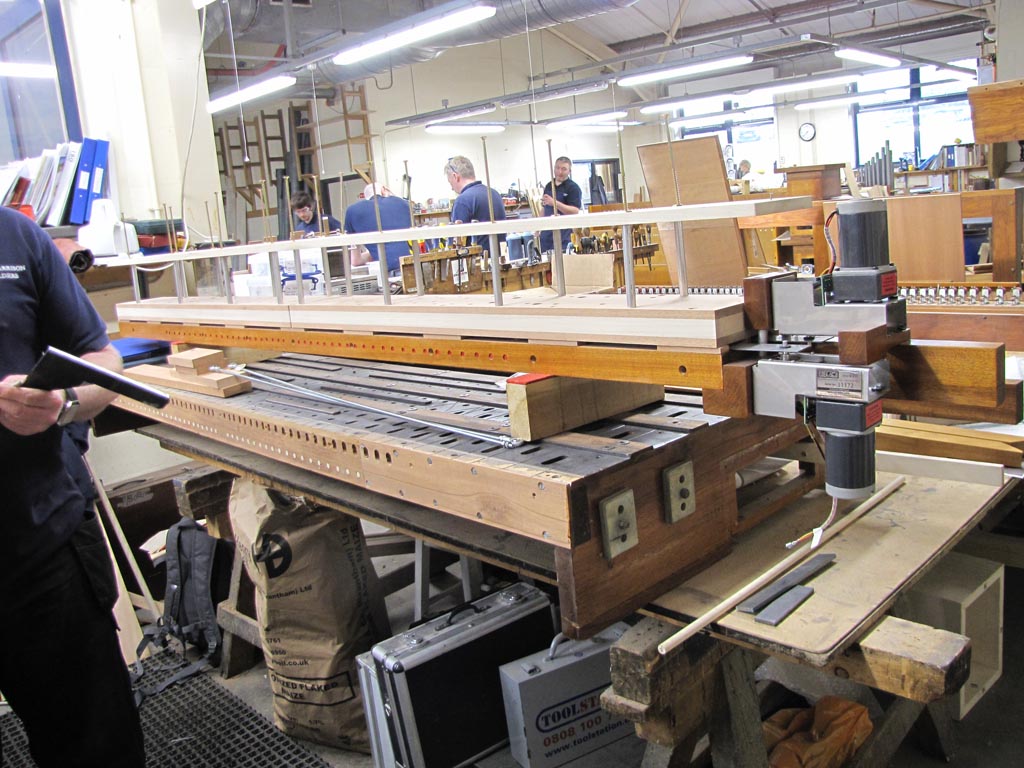

Soundboards & Actions A new lever magnet primary will be installed on the Cornopean unit chest and the key actions will be checked and adjusted. The main Swell soundboard to be modified to accommodate new string stops.  The Cornopean chest will be revised to accommodate the Clarion extension; a new unit chest provided for Oboe unit; new Soundboard provided for Solo reed. The remaining soundboards will be opened up, cleaned, and altered.



Pedal reservoir to be re-leathered and remaining reservoirs cleaned and checked.  High-pressure reservoir to be made for new Solo Reeds.  New wind trunking and concussions made where necessary.  Tremulants overhauled .  A new main blower provided and booster blower for Solo

The rear case panels will be removed and revised to return to the west wall.  Remaining case panels to be cleaned. The Swell box will be cleaned, wear will be taken up in its mechanism and will be extended westward to accommodate the additional stops on this division. New building frame will be installed for this purpose. The Open Wood and Bourdon chests will be moved westward to improve service access in the bottom of the organ. Passage-board at the upper level to be revised along with the provision of hand rails to improve safety of access to the Swell box.

Below are Photos by The Very Rev’d Simon Aiken of St Dunstan’s Cathedral during the installation
